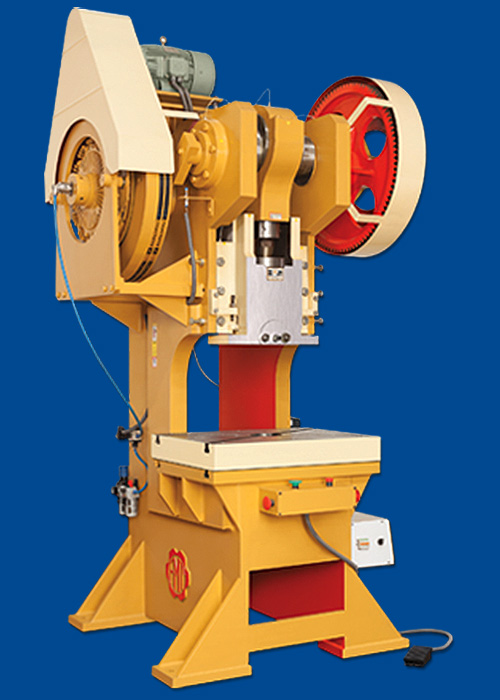

Features » Full
Steel Body Fabricated Frame Used
» Special Type Steel Used for Shaft
» Gears made from
Steel Cast
» Revolving Pin
Type Clutch Used
» Table made from
High Quality Cast Iron
» Flywheel made from Good Cast Iron
Technical
Specification
Capacity
5
10
20
30
50
75
100
Crank Dia.
48 mm
60 mm
76 mm
83 mm
95 mm
102 mm
127 mm
Stroke Length
38 mm
51 mm
75 mm
75 mm
100 mm
114 mm
127 mm
No. of Stroke
80 pm
70 pm
65 pm
60 pm
50 pm
40 pm
30 pm
Hole of Ram
20 mm
25 mm
32 mm
38 mm
45 mm
51 mm
51 mm
Bed Size
305 x 175
405 x 255
460 x 300
555 x 380
610 x 405
635 x 450
815 x 585
Bed to Ram Dist.
180 mm
225 mm
265 mm
280 mm
300 mm
350 mm
380 mm
Floor to Bed
610 Apr.
725 Apr.
750 Apr.
755 Apr.
775 Apr.
775 Apr.
755 Apr.
All-over Size
1300 x 500
1600 x 600
1750 x 700
1950 x 755
2250 x 925
2500 x 1120
2700 x 1250
Motor Required
0.5 HP
1
HP
2
HP
3
HP
5
HP
7.5 HP
10 HP
Approx Weight
300 Kgs.
530 Kgs.
950 Kgs.
1300 Kgs.
2350 Kgs.
3000 Kgs.
4800 Kgs.
As day to day
improvements are contemplated we reserver the right to change
Specifications and Design.
Your good advice will be solicited for your requirement.
All material used in our product are as per ISO Standards. Best Quality
is our motto.
For better performance of the machine, we reserve rights to alter the
designs and specification without prior notice.
