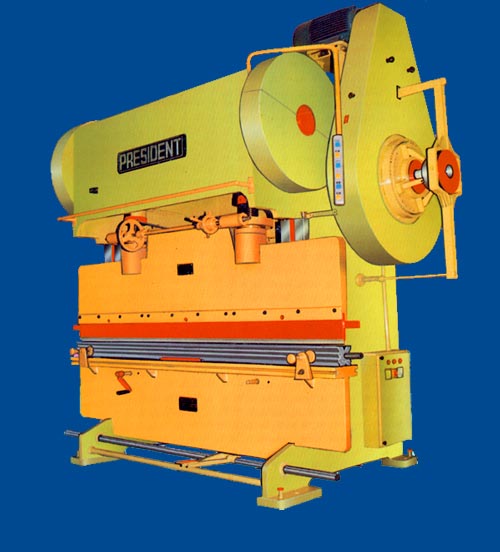

 President Press Brake Machine




Click Here to see Bending Chart

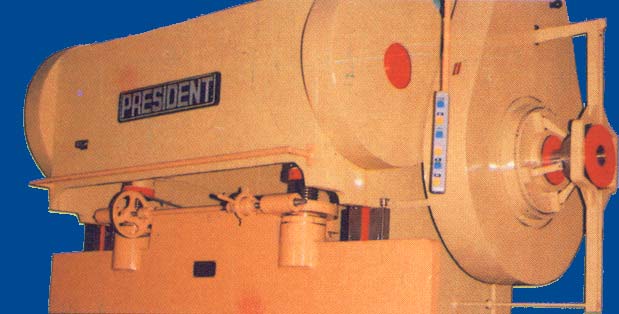

Product Details

FRAME:
It is fabricated with prime M. S. plats. Its interlocked construction where the bed is directly supported on the side walls, ensures consistent accuracy and perfect alignment. Due to its generous proportions it imparts ample strength to the complete assembly and ensures against deflection even while working at full rated capacity.

RAM AND BED:
Made from steel plates of suitable thickness, machined for straightness and parallelism of the working surfaces. Ram is guided and supported throughout the stroke by accurately machine guide ways.


DRIVE SYSTEM:
Power a transmitted to the ram through two individual gear drives for uniform load distribution throughout the length. This also reduces the torsional stresses on the eccentric shaft. Electric motor used is of sufficient H P. which reduces slowdown of flywheel and increases energy available per stroke. The gear and pinion are made out of carbon-alloy steel.

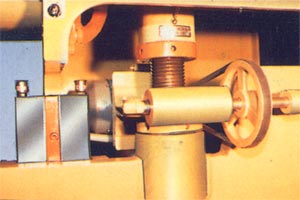

RAM ADJUSTMENT:
Motorized ram adjustment is provided to facilitate quick and accurate adjustment of required bending angle. A spring loaded dog clutch enables to angular setting of ram.


CLUTCH AND BRAKE:
CLUTCH: Press brakes are provided with high torque low-inertia friction clutch.
BRAKE: Heavy duty mechanical brake ensuring immediate breaking of ram on releasing the pedal. Clutch operating levers are designed in such a way that minimum engaging force is required at the pedal.

FRONT AND REAR GAUGE:
FRONT GAUGE: T Slotted front guage fabricated from milled steel detachable.

REAR GAUGE:
Hand operated Screw type rear gauge is provided to facilitate repetitive jobs.


LUBRICATION:
All bearing parts and guide surfaces are lubricated through connected oil cups and hand operated lubrication pump.

STANDARD EQUIPMENTS:
Standard V-Block (Die) and Punch. Front & Rear gauge. Motor pully, Foot pedal, Gear & Fly wheel guards and Standard instruction manual.

STANDARD ACCESSORIES:
Electric Motor Control panel board, Vee belts, Push button pendent, Stroke counter, Manual lubrication pump, Electric and lubricating pipe, fittings and wiring.


OPTIONAL ACCESSORIES:
Goose neck punch and other tooling (Drowing as per required)

POWER SUPPLY:
400/440 Volts, 3 Phase, 50 Cycles.

NOTE: Electrical items & blade are not under warranty.


Back to Product

# Go Top #

Specification

Model Tone Bending Capacity in Mild steel Length - X Thickness D Clearance between Housings Stroke Per Minute Stroke of RAM (M.M.) RAM Adjus-
tment (M.M.)
Shut Height RAM Strock Down Depth of Throat (M.M.)
T
Main Motor
HP / KW
RAM Adjus-
tment Motor
HP / KW

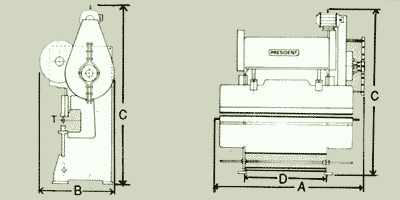

Overall Dimension in M.M.

Length
A
Width
B
Height
C
PPB-1 20 1525 x 1.6 1000 25 50 40 175 200 3 / 2.2 0.5 / .37 1900 1050 2200
PPB-2 25 2000 x 1.6 1220 25 50 40 200 250 5 / 3.7 0.5 / .37 2250 1150 2400
PPB-3 40 2500 x 2 1535 25 50 40 200 250 7.5 / 5.6 1 / .75 2750 1400 2600
PPB-4 65 3125 x 2.5 1900 25 75 50 250 300 10 / 7.6 1.5 / 1.1 3400 1575 2675
PPB-5 65 2000 x 4 1370 25 75 75 275 300 10 / 7.6 1.5 / 1.1 2400 1575 2675
PPB-6 80 2500 x 4 1535 25 75 75 275 300 12.5 / 9.7 2 / 1.5 2800 1600 2950
PPB-7 100 3125 x 4 1900 25 75 75 275 300 15 / 11.2 2 / 1.5 3400 1800 3400
PPB-8 120 2500 x 6 1700 25 75 75 275 300 20 / 15 2 / 1.5 2900 1800 3400
PPB-9 150 2500 x 8 1700 25 75 75 275 300 25 / 18.7 2 / 1.5 2900 1800 3400
PPB-10 150 3125 x 6 1900 25 75 75 275 300 25 / 18.7 2 / 1.5 3400 1800 3400


All Dimensions are in mm.
For better performance of the machine, we reserve rights to alter the designs and specification without prior notice.
